CAPTAIN 263 HST 4WD – MID ROPS

Category: Compact Series, EU Tractors
Eazy to Operate. Orchard Ready. Hydrostatic Power.
The CAPTAIN 263H MID ROPS is a specialized compact tractor designed for orchards, vineyards, and low-clearance environments. Combining 3-Range Hydrostatic Transmission (HST) with a MID ROPS design, this model offers unmatched ease of operation, safety, and manoeuvrability under tree canopies. Powered by the proven Mitsubishi Stage‑V engine, it delivers 25 HP of clean, efficient power while meeting European emission standards.
View Brochure
Send Inquiry

Technical Specifications

Explore the key specs that define our product’s strength and efficiency. Engineered to deliver peak performance, every detail is optimized for your success.

Engine HP Category 25
Engine Type Mitsubishi MVS3L2 Stage-V
No. of Cylinder 3
Capacity (CC) 1319
Rated Speed (RPM) 2500
Cooling System Liquid Cooled
Bore / Stroke (mm) 78/92
Max. Torque(Nm)@RPM 76.3(Nm) @ 2000 RPM
Type Hydrostatic
Gears 3 Forward / Reverse, Options:Low, Medium or High Gear
PTO PRM Rear 540 / Mid 2000
Steering Hydrostatic Power Steering
Brake Type Multi Disc Oil Immersed
Hydraulics System Precision Control
Lift Capacity (Kgs.) 900 (at Lower Link Point)
No. of Pumps 2 (Total 28 LPM)
Auxiliary Hydraulics 1 DA Auxiliary Hydraulics with 2 QRCs
Optional Kit available: Extra Secondary DA Auxiliary Hydraulics with 2 more QRCs

Your Success, Powered by Smart Features

Behind every great outcome is a set of tools designed to make it happen. From seamless integrations to intelligent automation, our product empowers you to achieve more with ease.

Italian Designed Lion Face

Hydrostatic Power Steering

Engine: Stage V Mitsubishi 3 Cylinder

Front Opening Bonnet

Smart ADDC (2 Lever) Hydraulics

Ergonomic Seating & Footboard Area

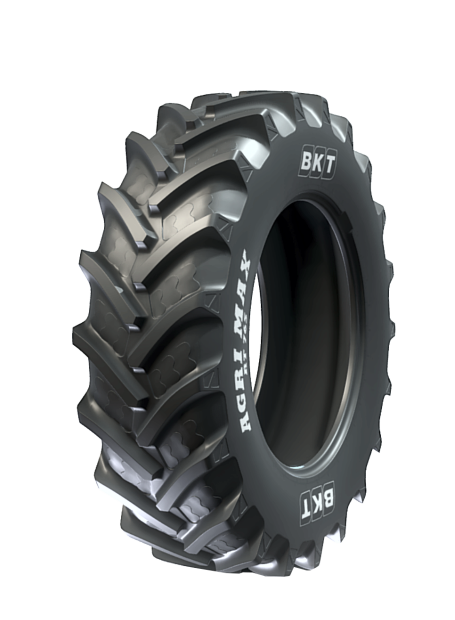

Advanced Tyre Technology for Every Drive​

Our tyres combine innovative design with premium materials to deliver unmatched performance, safety, and longevity on all road types.

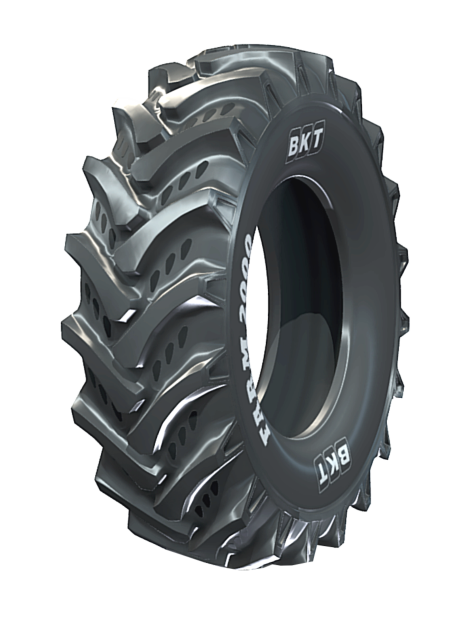

Fornt 180/85D12
Rear 8.30 x 20
Speed Rounded Off (km/hr.) 0 to 22
Size L(mm) 2769
Size W(mm) 1140
Height – with Front(MID) ROPS UP(mm) 2137
Height – with Front(MID) ROPS Folded Down(mm) 1476
Wheel Base(mm) 1550
Rear Track Center(mm) 811 to 988
Weight(kg) 1093

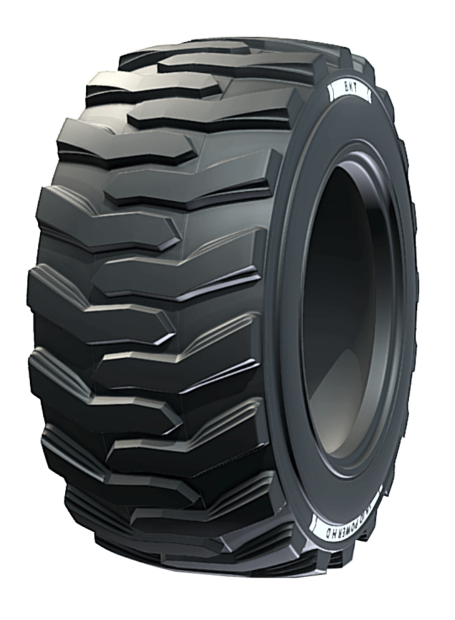

Fornt 23 x 8.5 – 12
Rear 33 x 15.5 – 16.5
Speed Rounded Off (km/hr.) 0 to 21
Size L(mm) 2769
Size W(mm) 1470
Height – with Front(MID) ROPS UP(mm) 2129
Height – with Front(MID) ROPS Folded Down(mm) 1452
Wheel Base(mm) 1550
Rear Track Center(mm) 980 to 1080
Weight(kg) 1135

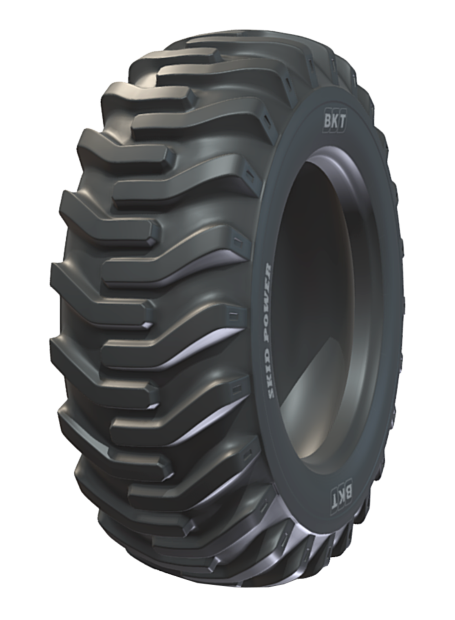

Fornt 23 x 8.5 – 12
Rear 33 x 15.5 – 16.5
Speed Rounded Off (km/hr.) 0 to 21
Size L(mm) 2769
Size W(mm) 1485
Height – with Front(MID) ROPS UP(mm) 2113
Height – with Front(MID) ROPS Folded Down(mm) 1448
Wheel Base(mm) 1550
Rear Track Center(mm) 980 to 1080
Weight(kg) 1163

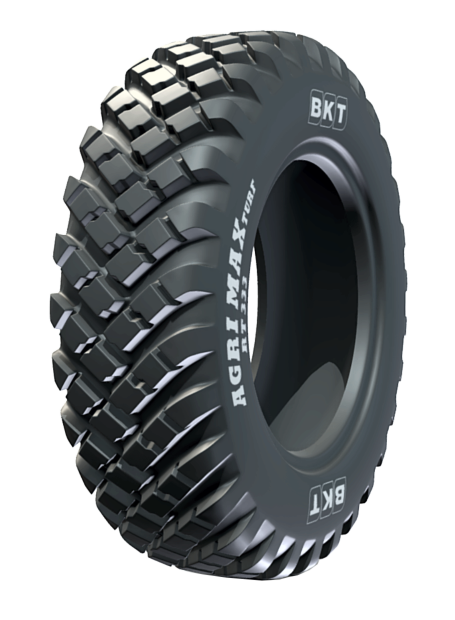

Fornt 180/85D12
Rear 280/70R20
Speed Rounded Off (km/hr.) 0 to 22
Size L(mm) 2769
Size W(mm) 1169
Height – with Front(MID) ROPS UP(mm) 2137
Height – with Front(MID) ROPS Folded Down(mm) 1457
Wheel Base(mm) 1550
Rear Track Center(mm) 833
Weight(kg) 1125

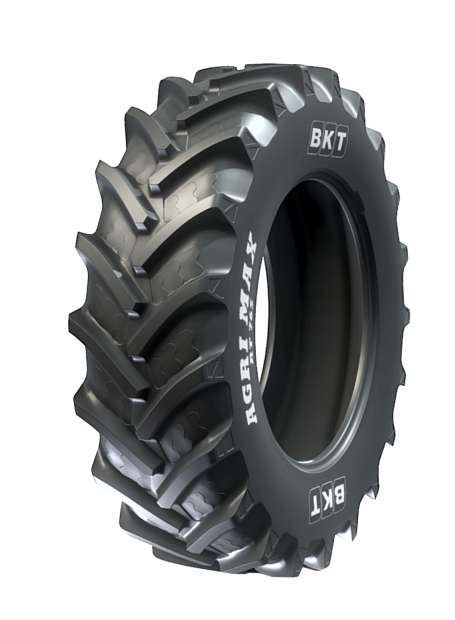

Fornt 240/60R12
Rear 320/65R18
Speed Rounded Off (km/hr.) 0 to 21
Size L(mm) 2769
Size W(mm) 1199
Height – with Front(MID) ROPS UP(mm) 2128
Height – with Front(MID) ROPS Folded Down(mm) 1469
Wheel Base(mm) 1550
Rear Track Center(mm) 951 to 988
Weight(kg) 1125

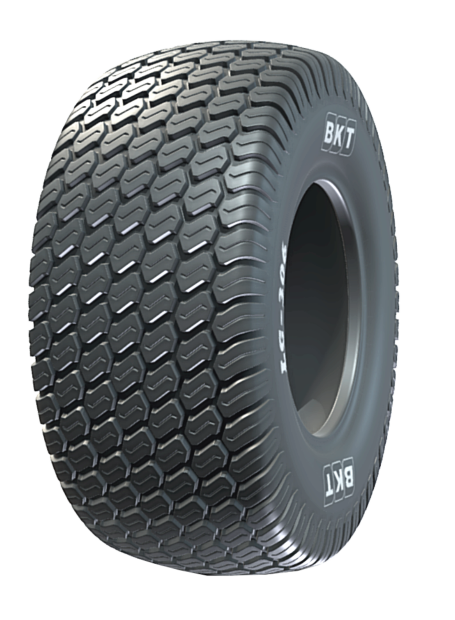

Fornt 23 x 8.5 – 12
Rear 280/70R18
Speed Rounded Off (km/hr.) 0 to 21
Size L(mm) 2769
Size W(mm) 1162
Height – with Front(MID) ROPS UP(mm) 2121
Height – with Front(MID) ROPS Folded Down(mm) 1457
Wheel Base(mm) 1550
Rear Track Center(mm) 883 to 988
Weight(kg) 1099

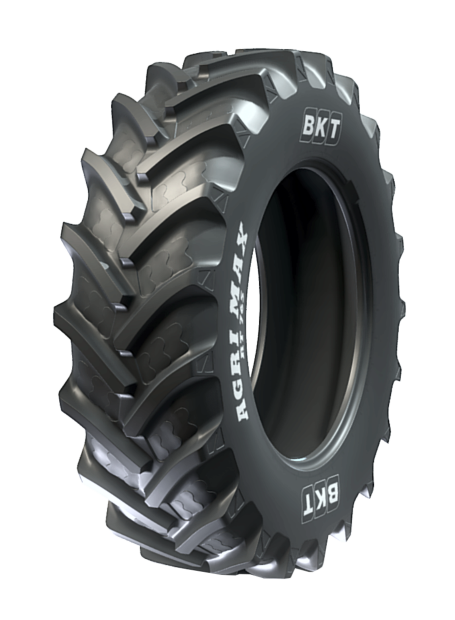

Fornt 23 x 8.5-12
Rear 12 x 16.5
Speed Rounded Off (km/hr.) 0 to 21
Size L(mm) 2769
Size W(mm) 1271
Height – with Front(MID) ROPS UP(mm) 2113
Height – with Front(MID) ROPS Folded Down(mm) 1453
Wheel Base(mm) 1550
Rear Track Center(mm) 939
Weight(kg) 1137

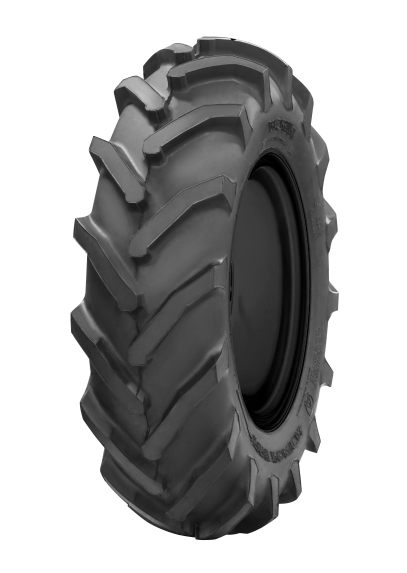

Fornt 5.00 x 12
Rear 8.00 x 18
Speed Rounded Off (km/hr.) 0 to 20
Size L(mm) 2769
Size W(mm) 1140
Height – with Front(MID) ROPS UP(mm) 2100
Height – with Front(MID) ROPS Folded Down(mm) 1447
Wheel Base(mm) 1550
Rear Track Center(mm) 811 to 988
Weight(kg) 1072
Fornt 180/85D12
Rear 8.30 x 20
Speed Rounded Off (km/hr.) 0 to 22
Size L(mm) 2769
Size W(mm) 1140
Height – with Front(MID) ROPS UP(mm) 2137
Height – with Front(MID) ROPS Folded Down(mm) 1476
Wheel Base(mm) 1550
Rear Track Center(mm) 811 to 988
Weight(kg) 1093
Fornt 23 x 8.5 – 12
Rear 33 x 15.5 – 16.5
Speed Rounded Off (km/hr.) 0 to 21
Size L(mm) 2769
Size W(mm) 1470
Height – with Front(MID) ROPS UP(mm) 2129
Height – with Front(MID) ROPS Folded Down(mm) 1452
Wheel Base(mm) 1550
Rear Track Center(mm) 980 to 1080
Weight(kg) 1135
Fornt 23 x 8.5 – 12
Rear 33 x 15.5 – 16.5
Speed Rounded Off (km/hr.) 0 to 21
Size L(mm) 2769
Size W(mm) 1485
Height – with Front(MID) ROPS UP(mm) 2113
Height – with Front(MID) ROPS Folded Down(mm) 1448
Wheel Base(mm) 1550
Rear Track Center(mm) 980 to 1080
Weight(kg) 1163
Fornt 180/85D12
Rear 280/70R20
Speed Rounded Off (km/hr.) 0 to 22
Size L(mm) 2769
Size W(mm) 1169
Height – with Front(MID) ROPS UP(mm) 2137
Height – with Front(MID) ROPS Folded Down(mm) 1457
Wheel Base(mm) 1550
Rear Track Center(mm) 833
Weight(kg) 1125
Fornt 240/60R12
Rear 320/65R18
Speed Rounded Off (km/hr.) 0 to 21
Size L(mm) 2769
Size W(mm) 1199
Height – with Front(MID) ROPS UP(mm) 2128
Height – with Front(MID) ROPS Folded Down(mm) 1469
Wheel Base(mm) 1550
Rear Track Center(mm) 951 to 988
Weight(kg) 1125
Fornt 23 x 8.5 – 12
Rear 280/70R18
Speed Rounded Off (km/hr.) 0 to 21
Size L(mm) 2769
Size W(mm) 1162
Height – with Front(MID) ROPS UP(mm) 2121
Height – with Front(MID) ROPS Folded Down(mm) 1457
Wheel Base(mm) 1550
Rear Track Center(mm) 883 to 988
Weight(kg) 1099
Fornt 23 x 8.5-12
Rear 12 x 16.5
Speed Rounded Off (km/hr.) 0 to 21
Size L(mm) 2769
Size W(mm) 1271
Height – with Front(MID) ROPS UP(mm) 2113
Height – with Front(MID) ROPS Folded Down(mm) 1453
Wheel Base(mm) 1550
Rear Track Center(mm) 939
Weight(kg) 1137
