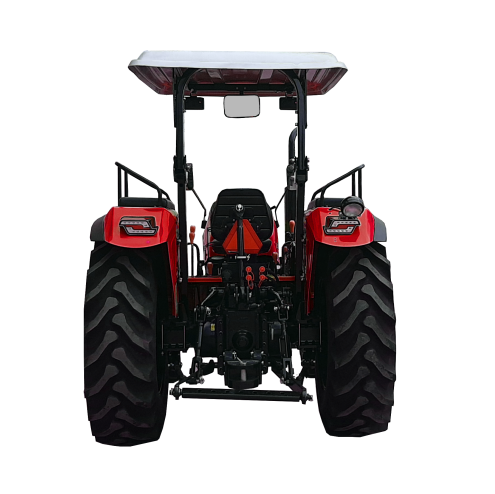

CAPTAIN 7545

Technical Specifications:

Engine
Model	4R 1040
Power (HP) Category	72 HP
Type	Kirloskar - 4 Stroke Liquid Cooled Diesel Engine
No. of Cylinders	4
Capacity (CC)	4160
Rated Engine Speed	2200
Torque	295 Nm / 18% Backup Torque
Bore / Stroke (cm)	105 / 120
Air Cleaner	Dry Type
Clutch
Type	Double Clutch
Plate Size	280 mm (Primary)
Tyre
Front	11.2 x 24
Rear	16.9 x 30
Transmission
Type	Carraro - Synchromesh
No. of Gears	12F + 12R
Speed	Min 1.51 km/hr, Max 31.16 km/hr
PTO Type	Independent
PTO Speed	540 & 540E
No. of Splines	6
Steering	Hydrostatic Power Steering
Brake Type	Oil Immersed Disc Brakes
Parking Brake	Mechanical
Hydraulic
Hydraulic Pumps Type	TANDEM Pump
A. Position	To Hold The Lower Link At Any Desired Height
B. Automatic Depth Draft Control	Maintains Uniform Draft
C. Mix Control	For Simultaneous Use of Position And Draft Control for Optimum Field Output.
Lifting Capacity(kg.)	2500
Auxiliary Hydraulics	2 DA with 4 QRCs Standard Supply
3 Point Linkage	Cat-2
Electrical Instruments
Battery, Capacity	100 Ah
Alternator	55 A
Starter Motor	2.7 kW
Fuel Tank
Capacity	80 Ltr.
Dimension (+/- 5 %)
Size LxWxH	4235 mm x 1970 mm x 2740 mm
Wheel Base	2360 mm
Min. Ground Clearance	440 mm
Min. Turning Radius	R-11.3 m, L-11.6 m
Weight of Tractor with ROPS	3320 kg

The Captain Utility Series tractors are engineered to provide exceptional power, efficiency, and versatility for modern farming. With a wide power range of 40 to 100 horsepower, these tractors are well-suited for both small-scale and large-scale farming operations. From heavy-duty tilling and plowing to transporting goods and handling various agricultural attachments, the Captain Utility series offers a solution for every task.

Category: Utility Series
